What Is Thin-Wall Die Casting?
In pursuit of reasonable structure and light weight of parts and components, aerospace, automotive, weapons and other industries have replaced parts that were originally composed of several simple castings, forgings, and machined parts with one integral casting instead. Non-ferrous alloy castings with a wall thickness of 2.0 to 4.0 mm are called thin-walled castings, and aluminum alloy castings with a wall thickness of less than 2.0 mm are called ultra-thin-walled castings. As a fast near-net forming process, die casting has the characteristics of high production efficiency, high dimensional accuracy, and the ability to form thin-walled deep cavity castings with complex shapes and clear contours. It is especially suitable for the integrated design and overall forming of thin-walled complex parts.
In the die-casting production of thin-walled aluminum alloy parts, there are many shortcomings from design to equipment and filling process simulation. More research is needed on the accuracy of alloy, die-casting machine, heat treatment and simulation.
The Thin-walled castings of aluminum alloys with characteristic of light-weighting and good mechanical properties have good prospect in producing large complex structure such as vehicle body and automotive chassis. At Minghe Casting, we provide industry-leading thin wall die casting services for your aluminum part needs
Why Choose Minghe Thin-Wall Die Casting Services?

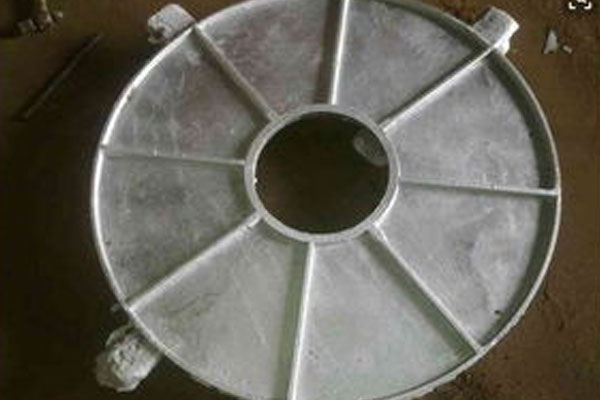

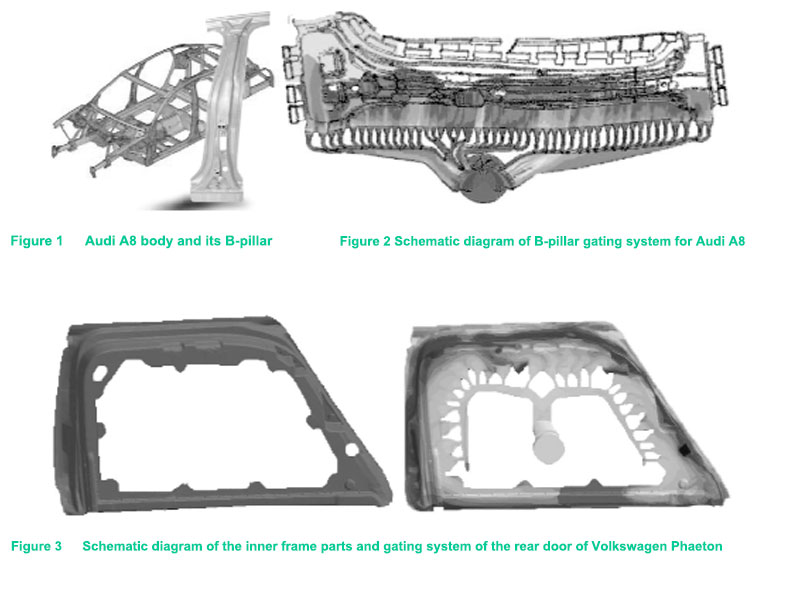

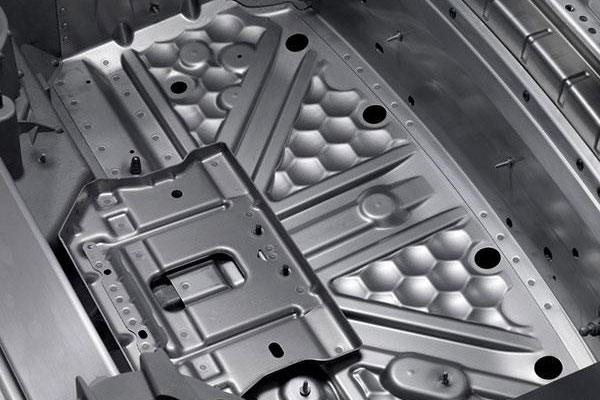

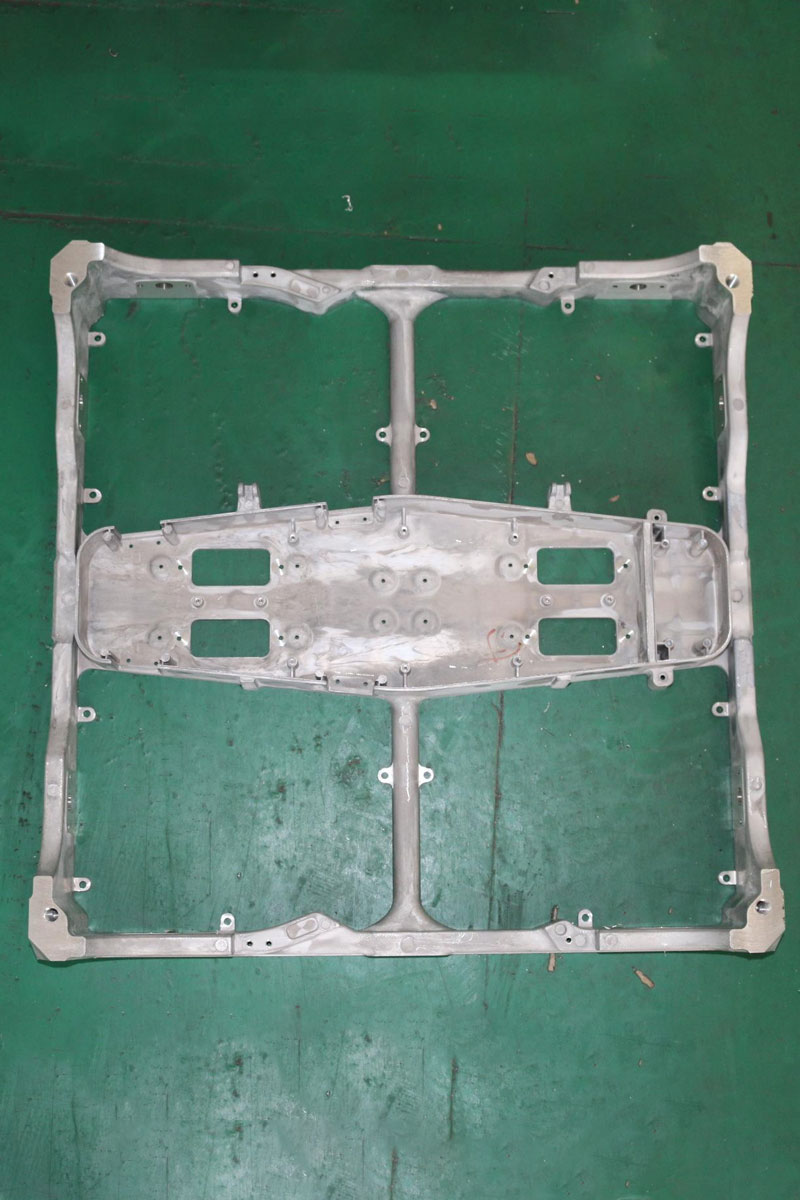

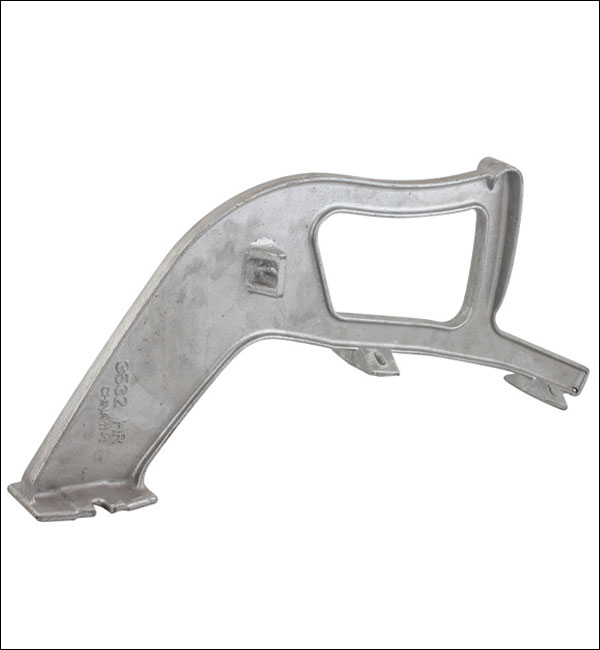

Aluminum alloy thin-wall die castings are mainly used in the body and chassis of high-end automobiles. Figure 1 is the aluminum alloy space frame structure of the Audi A8 car body. The B-pillar is the casting with the largest size, the most complex shape, and the highest mechanical performance requirements.The outer size is about 1 200 mm×200 mm×100 mm, and the wall thickness is 1. .0～2.5mm, Figure 2 is a schematic diagram of its gating system. It can be seen from Figure 2 and Figure 3 that this type of gating system adopts a multi-slit internal gate method, and at the same time uses a vacuum system to assist, requires a mold temperature machine to control the mold temperature, and the casting needs to undergo special heat treatment to meet the final use requirements, but The specific process parameters of vacuum die-casting and heat treatment are kept secret.
At present, only a few companies in China can produce aluminum alloy thin-walled body die castings, such as automobile chassis rear axle beams, car body front longitudinal beams, B-pillars and frame longitudinal frames, etc. More aluminum alloy thin-walled die castings are mainly used in Engine cylinder head cover.
Minghe Casting uses pressure casting to produce qualified ADC12 aluminum cylinder head covers with an average wall thickness of less than 2.5mm,Please contact our die casting experts to help you select the best process to meet the needs of your die casting project, or request a quote on your hot chamber die casting project today.

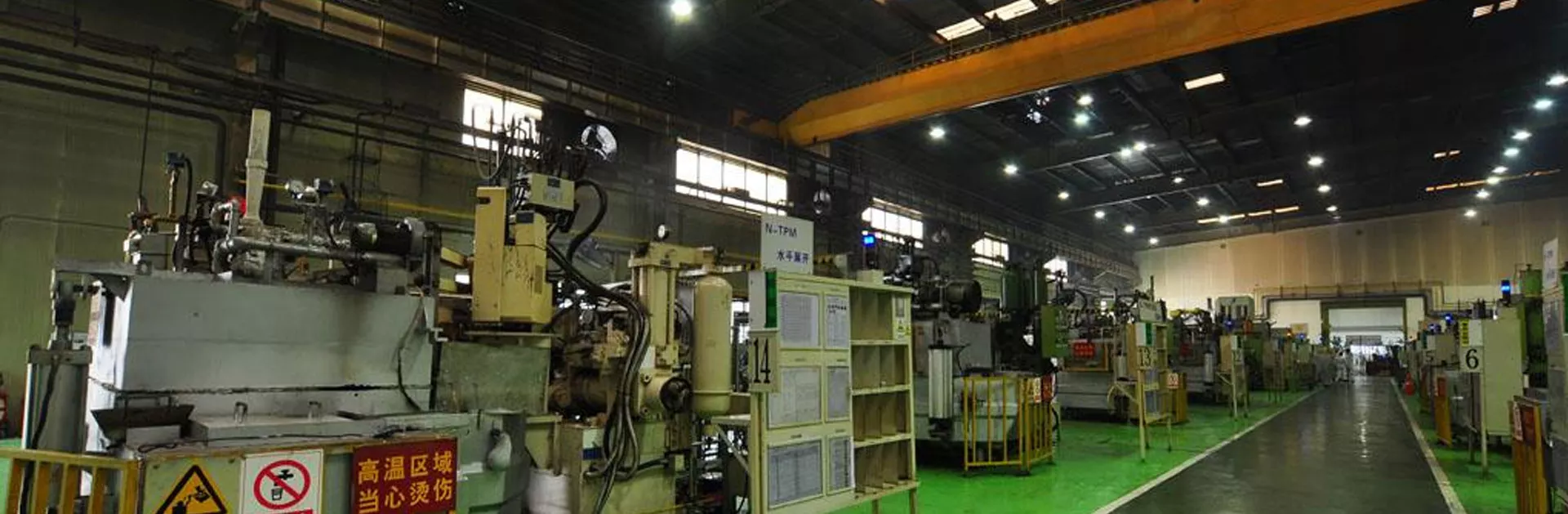

China Die Casting Services Capabilities

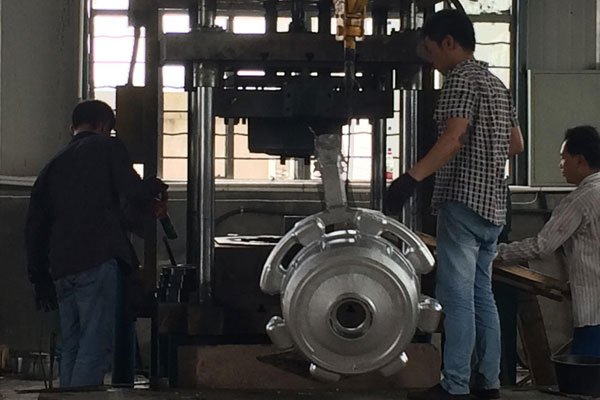

Minghe Casting offers and is capable of producing both medium and long-run projects when providing our die casting services. Minghe Casting has supplied the industry's leading die casting services for more than 35 years in a variety of technology for a wide range of applications.

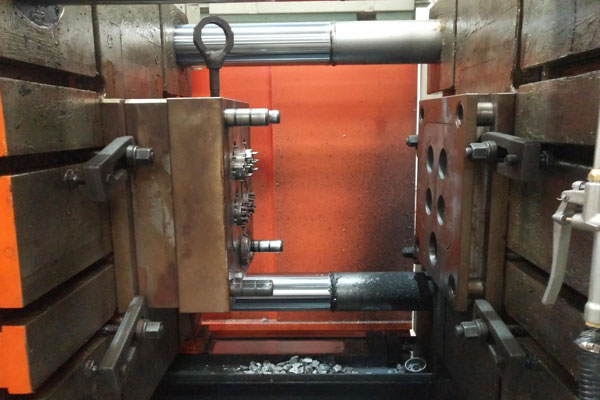

| Hot Chamber Die Casting for Low Melting Point Alloys. We Can Help with Low Melting Point Alloys |

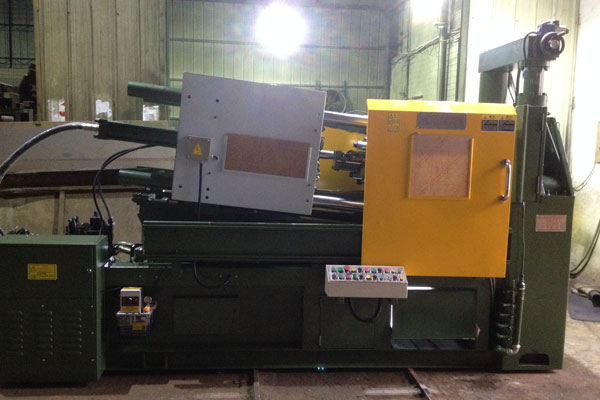

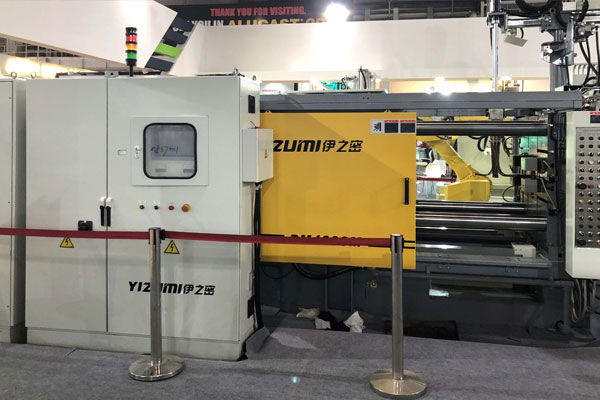

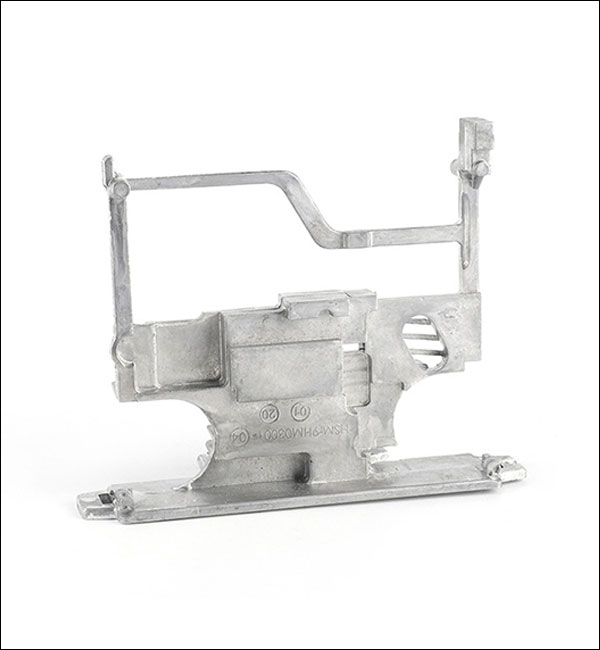

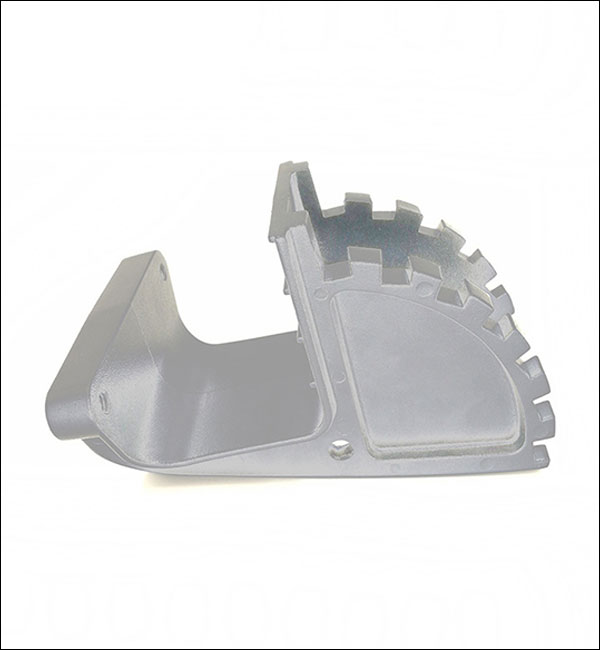

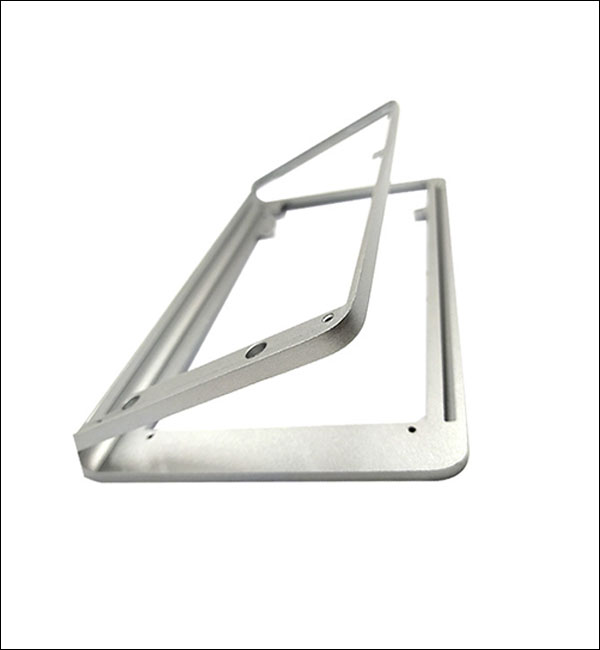

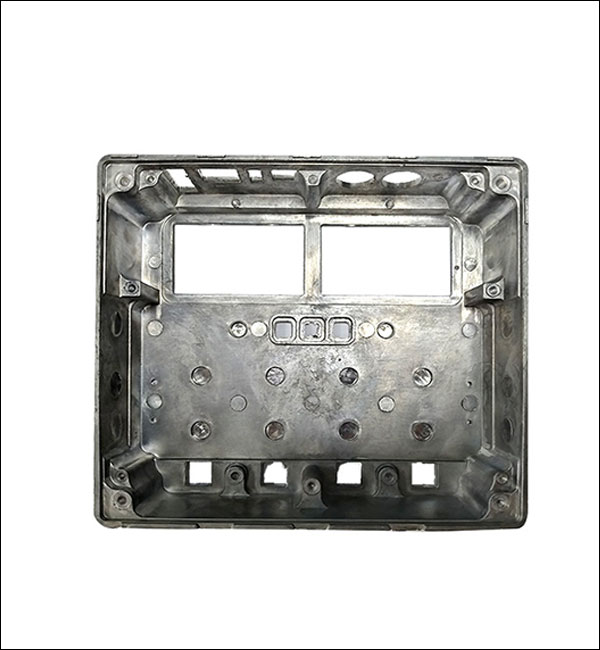

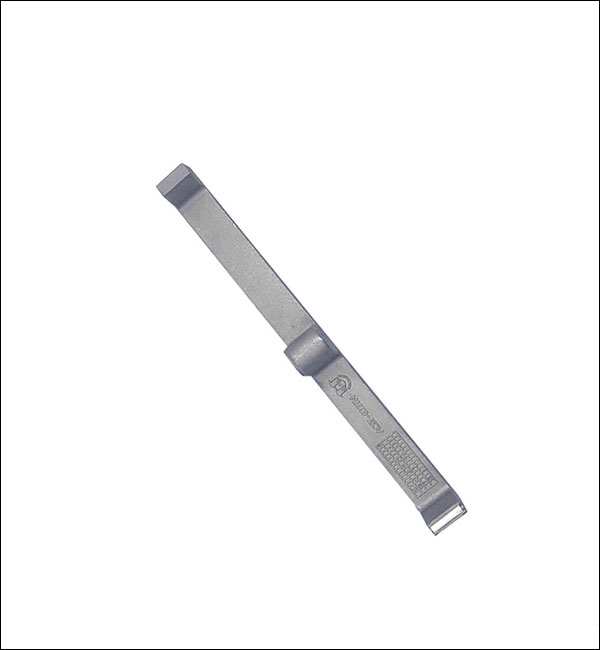

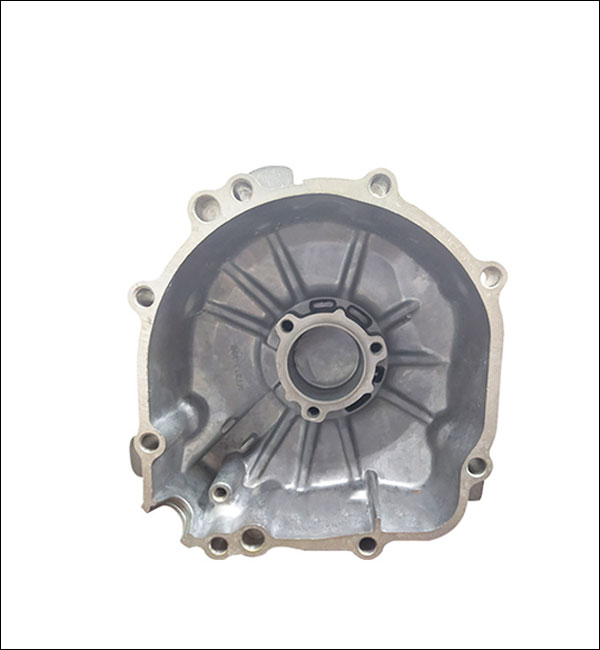

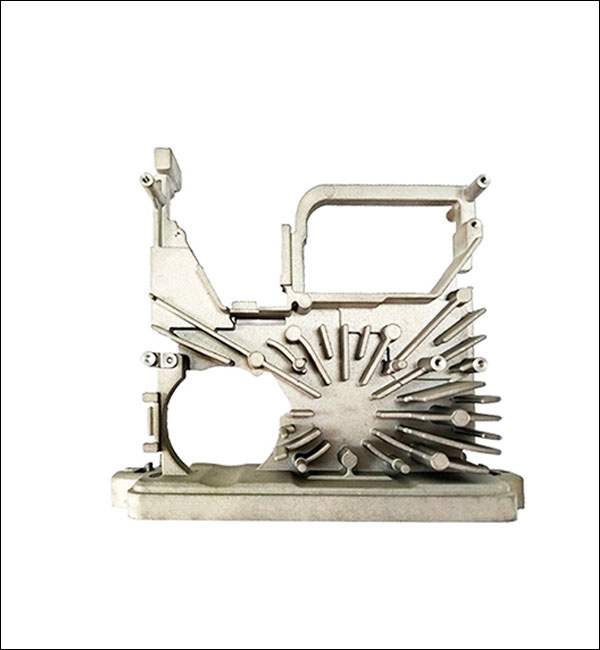

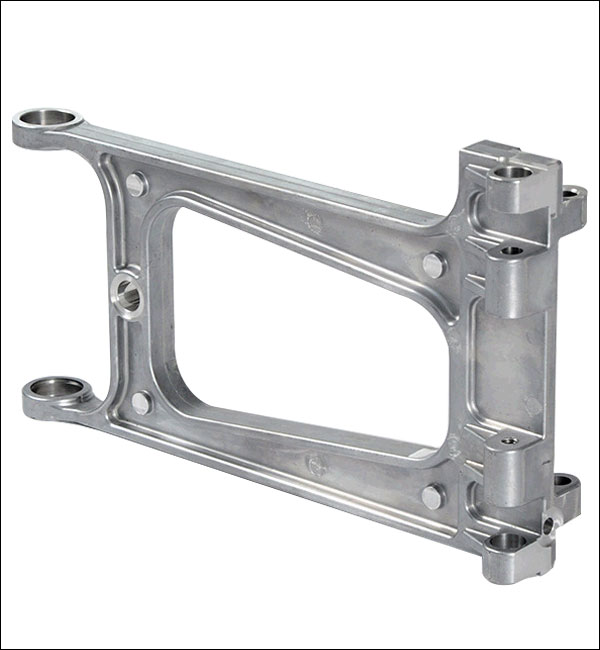

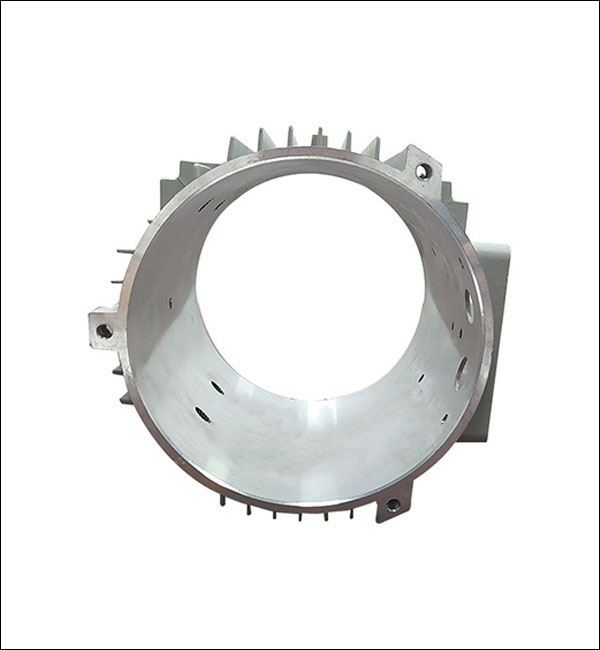

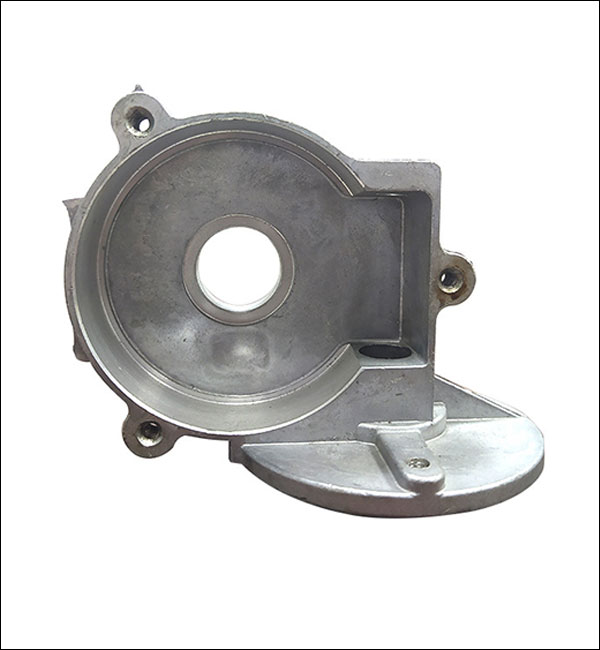

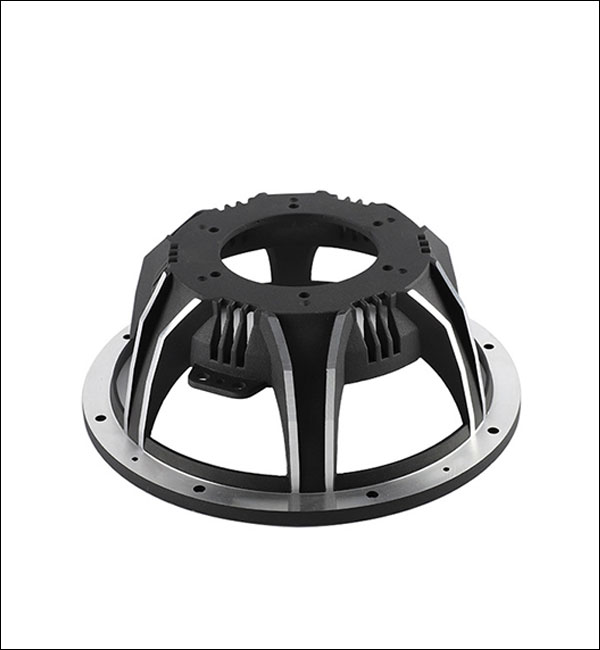

| Cold Chamber Die Casting for Strong Components and Fast Production |
| Ideal Strength-to-Weight Ratio; Thin Wall Die Casting for Lightweight, Complex Aluminum Parts |
| Die casting molds from Minghe utilize aluminum and zinc alloys to produce small to large run part identical castings. |
| The method has advantages like cost effective, good quality, and process control over other casting techniques. |
| Minghe offers in-house CNC machining as a complement to Minghe die casting services. |
China Minghe Die Casting Materials

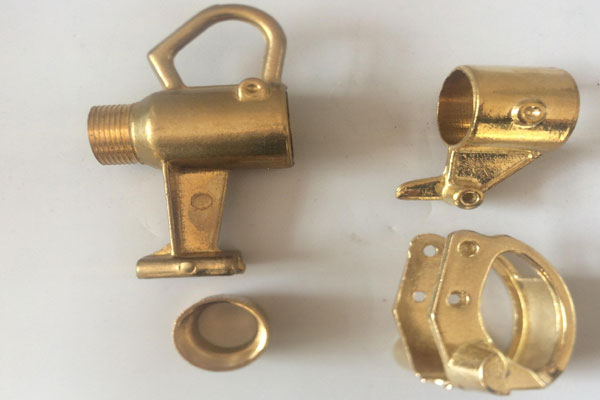

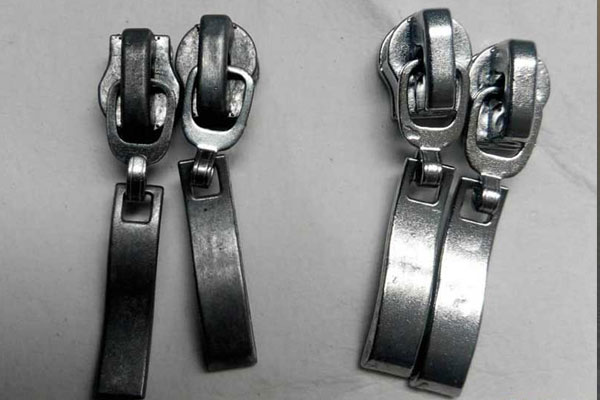

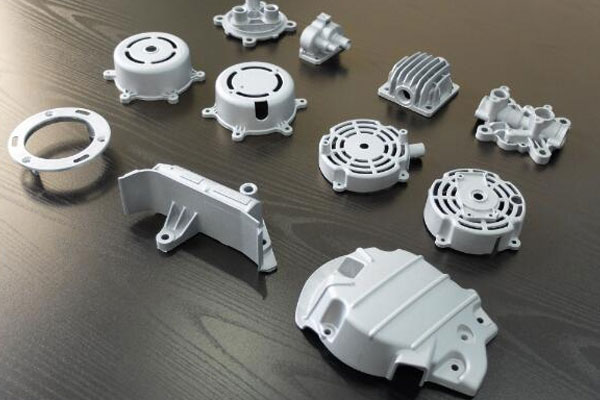

Minghe Die Casting services working with Aluminum、Zinc and Other.
